How to install solar panels?

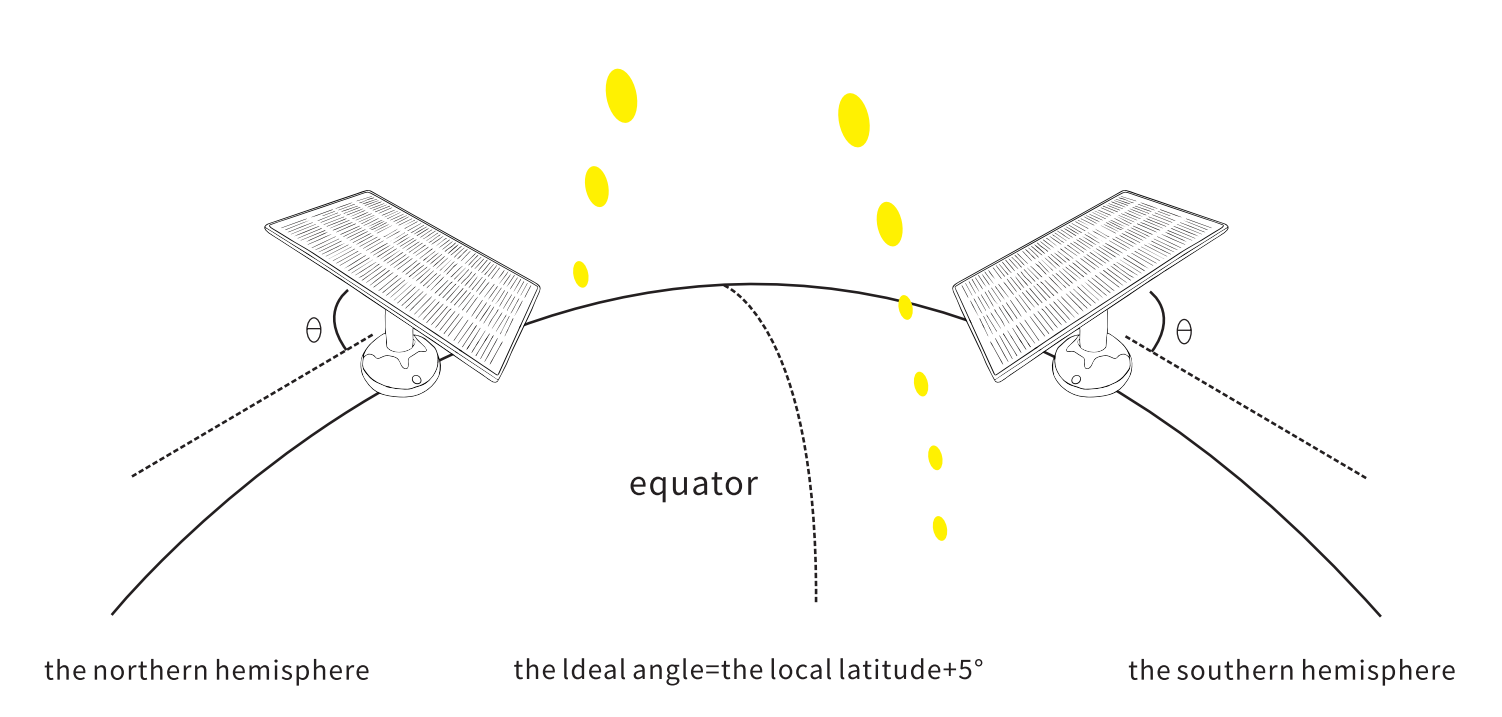

Please select a position with the most sunlight throughout the year for your solar panel. The solar panel only needs a few hours to direct sunlight to sufficiently power your camera daily. The amount of energy that the solar panel can produce is affected by the weather conditions, seasonal changes, geographic locations, etc.

Use the drilling tool to punch holes in the wall according to the hole distance of the base. It is recommended to mark the holes on the wall before drilling with the drilling template sticker. Screw the anchors into the holes, and then connect the solar panel bracket to the anchors with screws to complete the fixing. (Drilling template sticker, anchors, and screws used here are all in the Solar Panel Kit)

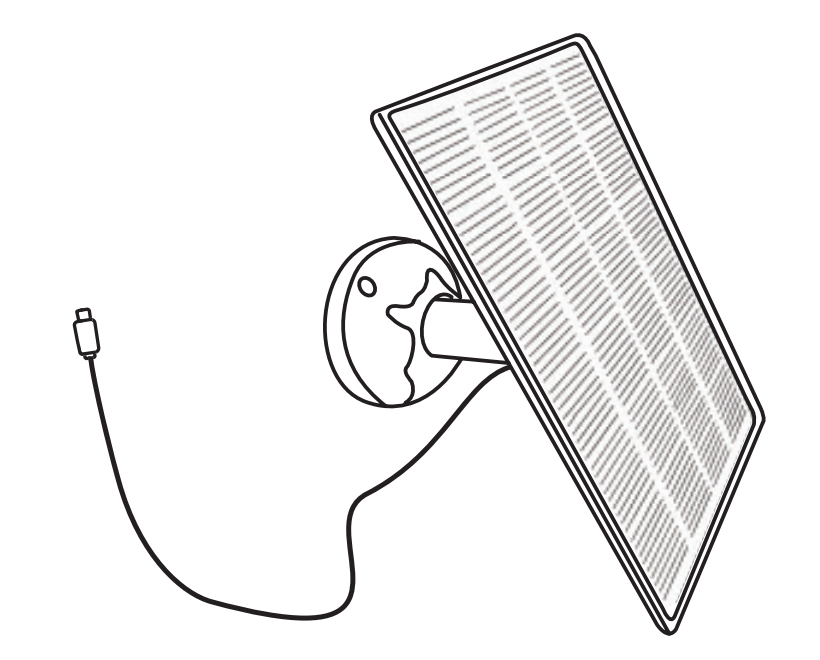

Slot the solar panel into the bracket and make sure it's secure.

Loosen the adjusting control on the bracket and adjust the angle of the solar panel to make it receive direct sunlight, and then re-tighten the adjusting control to secure your setting.

Connect the solar panels to the charging port of the Camera with the equipped 3-meter long Tpye-C charging cable.
